VIVALINE

SCROLL

: Pain Control

: Three types of high-frequency systems
(RET, CET, Bipolar)

: Attachable
multi-suction cup

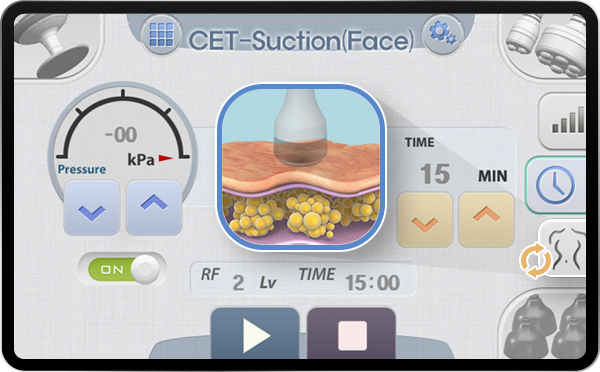

: Handpiece recognition function

: Portable Size

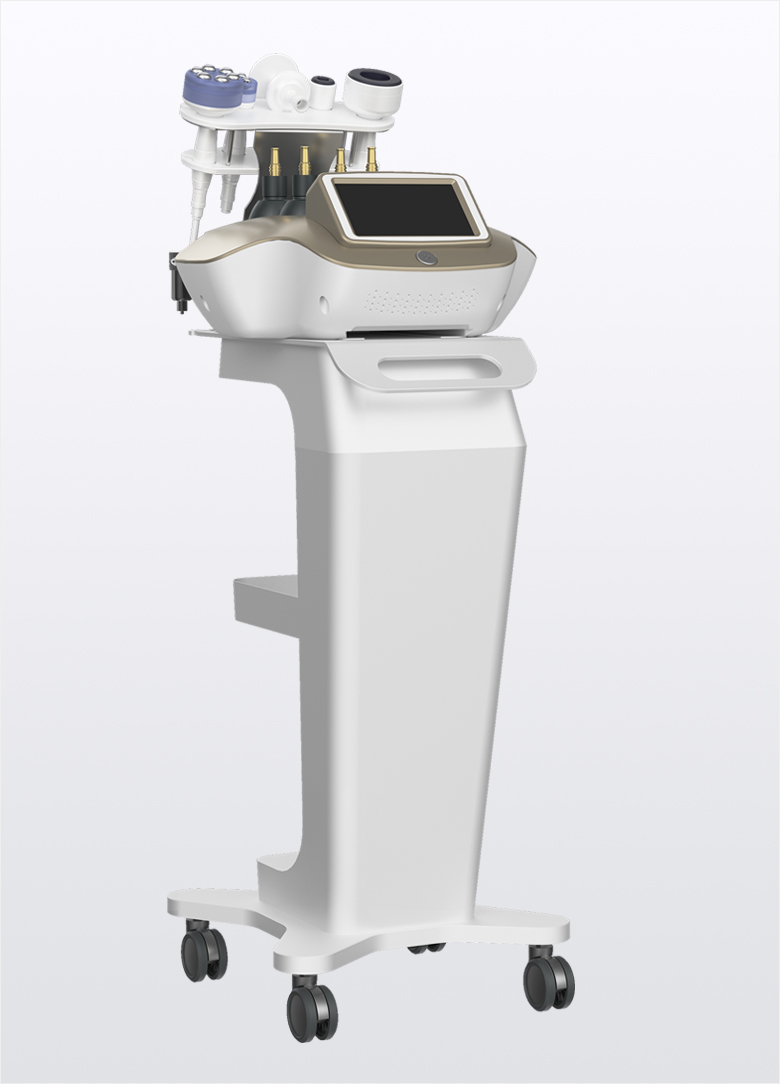

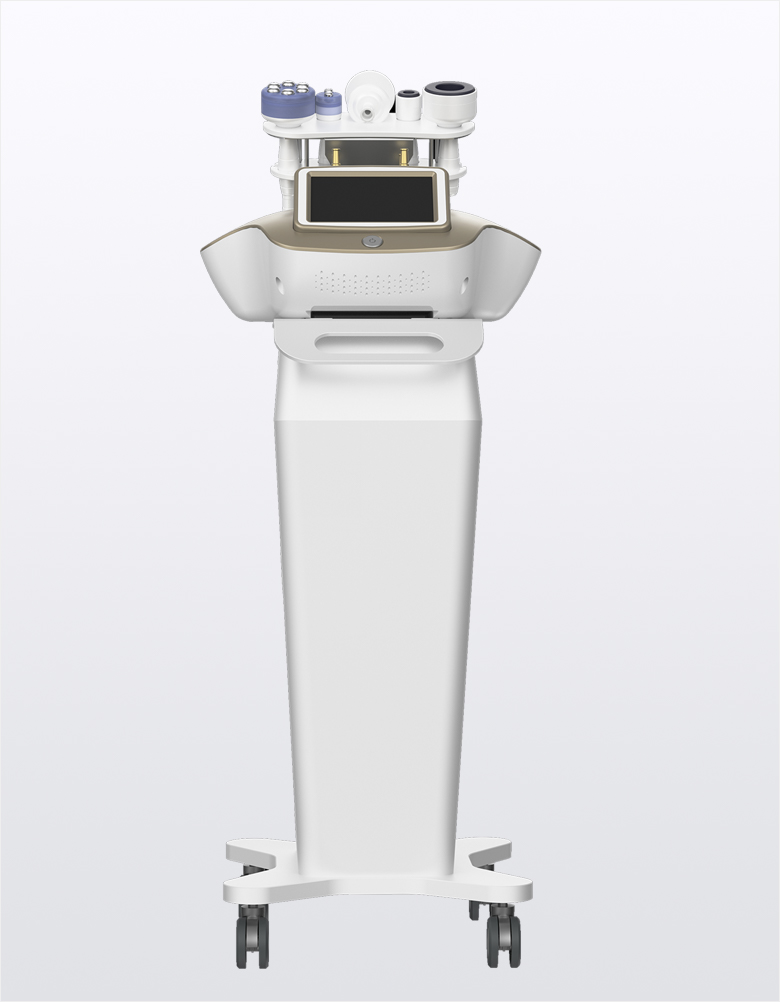

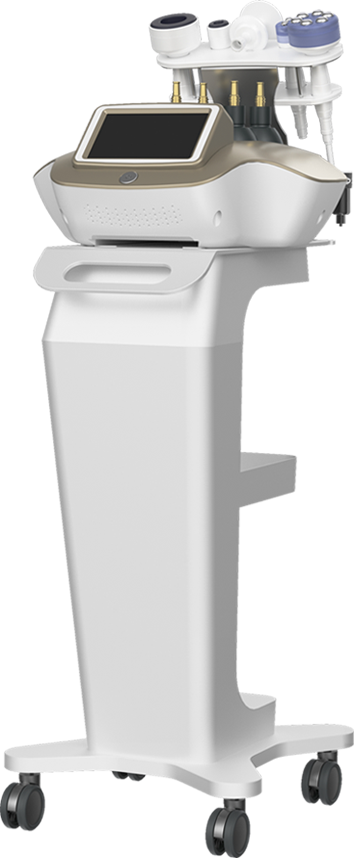

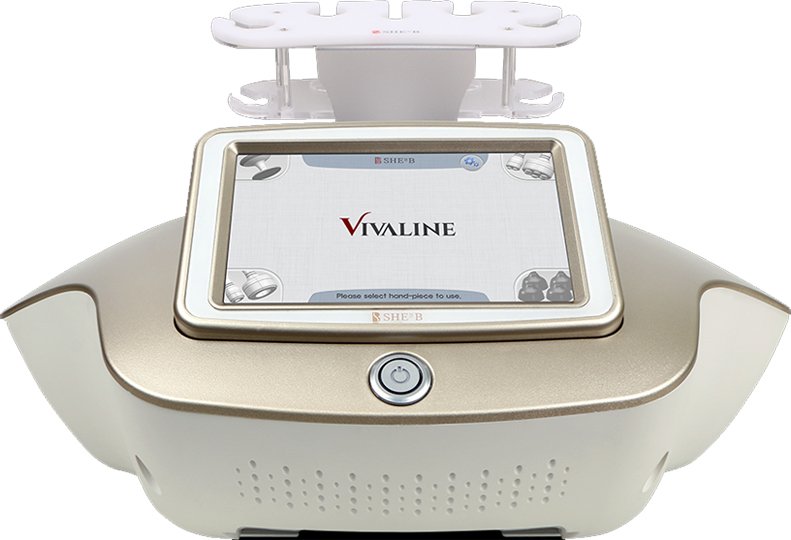

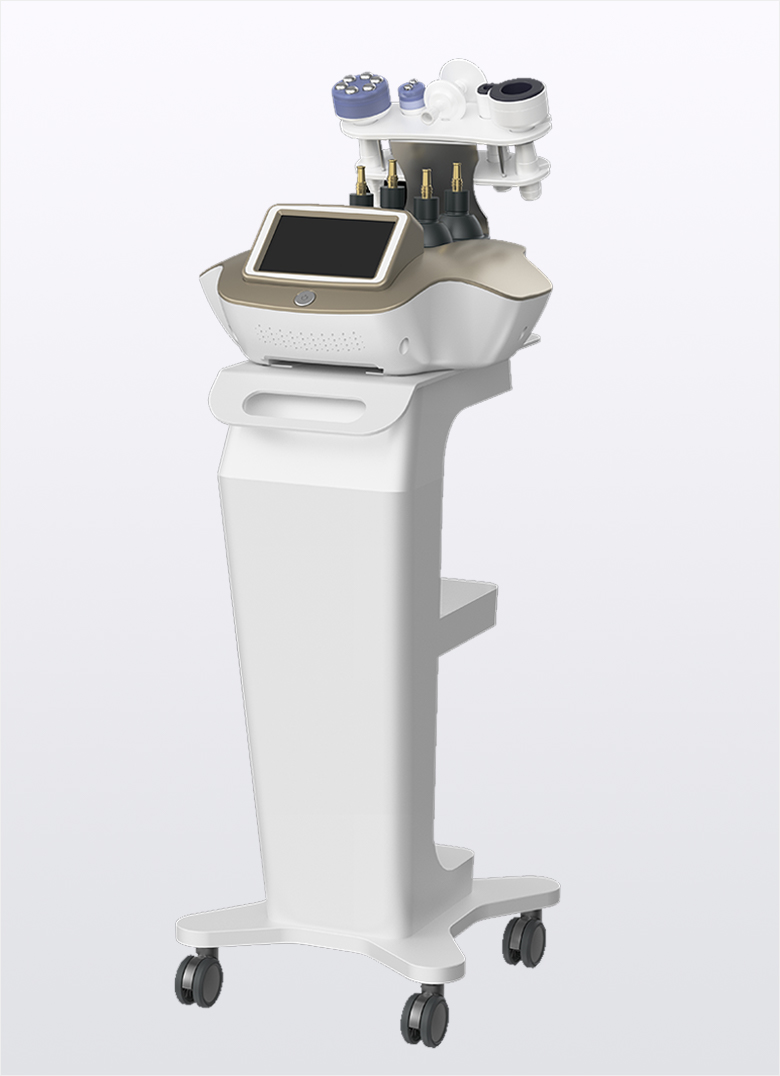

VIVALINE is a medical device
that applies high-frequency
energy to the human body
and uses it to relieve pain.

Principle of Operation

The High Frequency stimulator is composed of a power supply device,
a high frequency resonator, an operation panel, a handpiece and output applicator.

The High Frequency massager generates 0.3MHz, 0.5MHz, and 1MHz frequencies
in the MCU and combines the frequencies of 0.3MHz for CET-Suction and Multi-suction,
0.5MHz for RET, and 1MHz for Bi-polar, depending on the application.

A High Frequency signal source is generated and a current limited High Frequency amplified output
is generated by combining a high voltage signal source with a voltage of 48V in the RF control unit

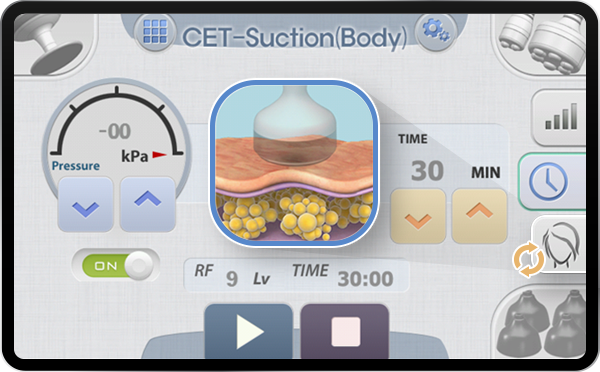

according to the generated signal source. In addition, in case of CET-suction and multi-suction,
the Suction function is controlled to occur with the set pressure through Pump control in MCU

MECHANISM

: 01
Multi-Scution Cup

: 02

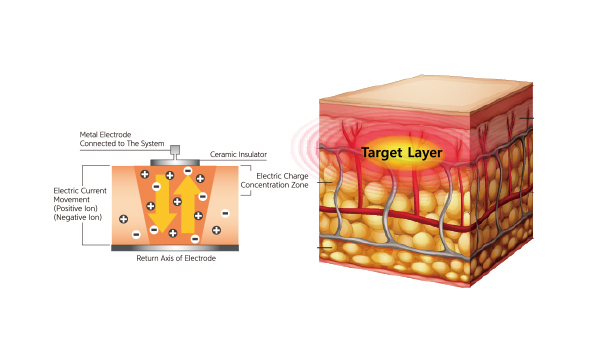

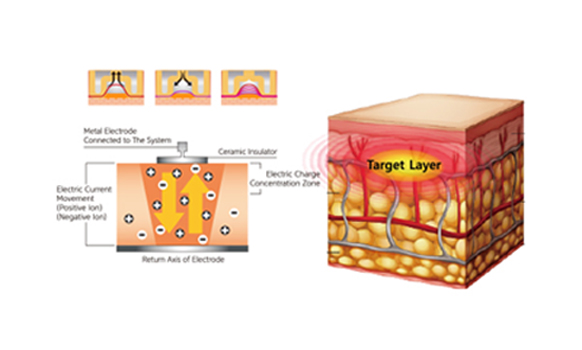

CET

: 03

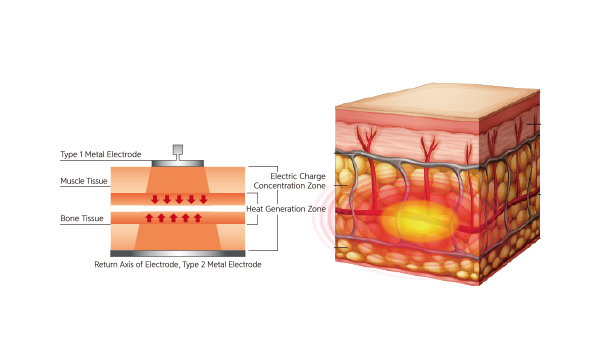

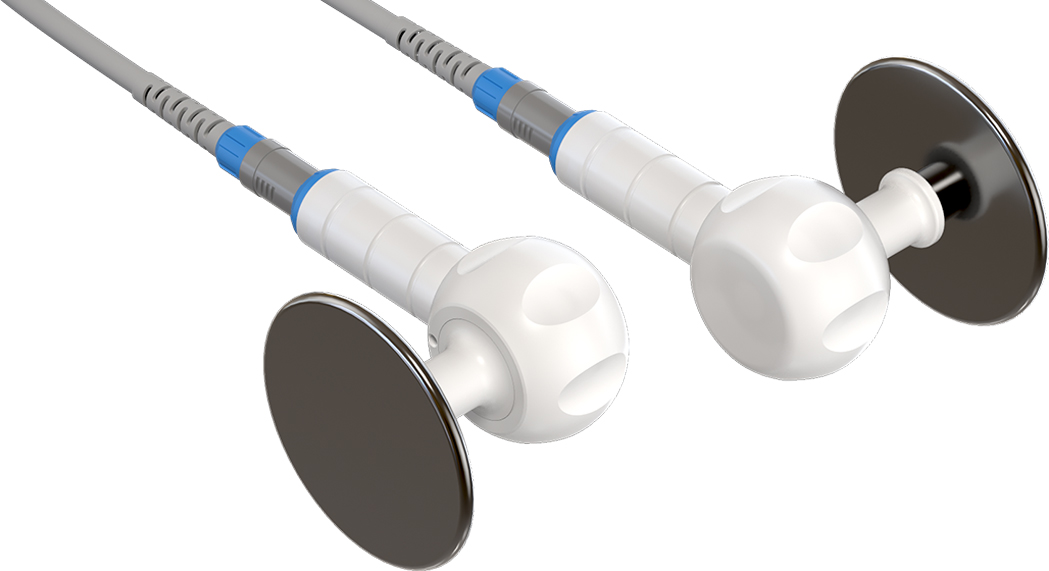

RET

: 04

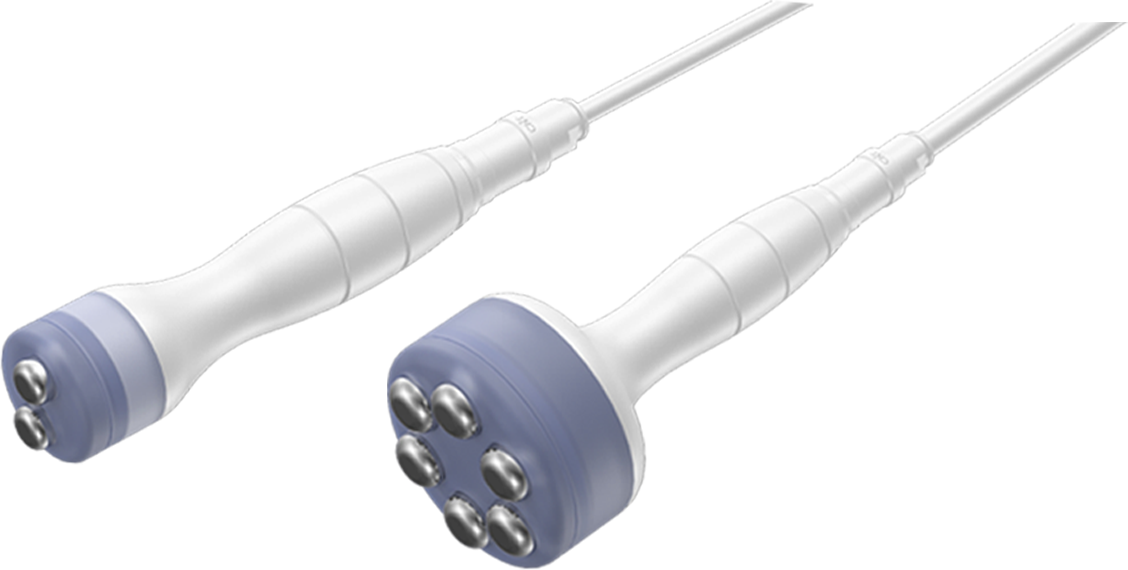

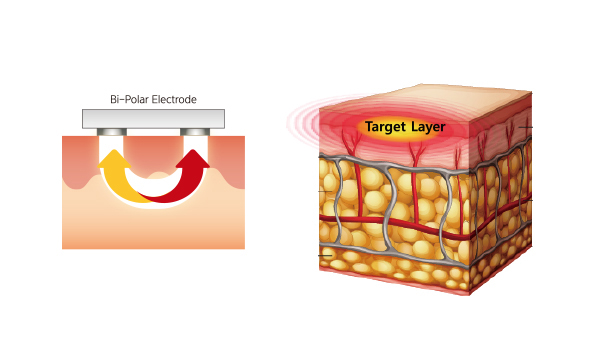

Bipolar

Three types of high-frequency system

VIVALINE is designed to use three different types of high-frequencies.
The depth of heat generated, varies depending on how high frequency is transmitted.

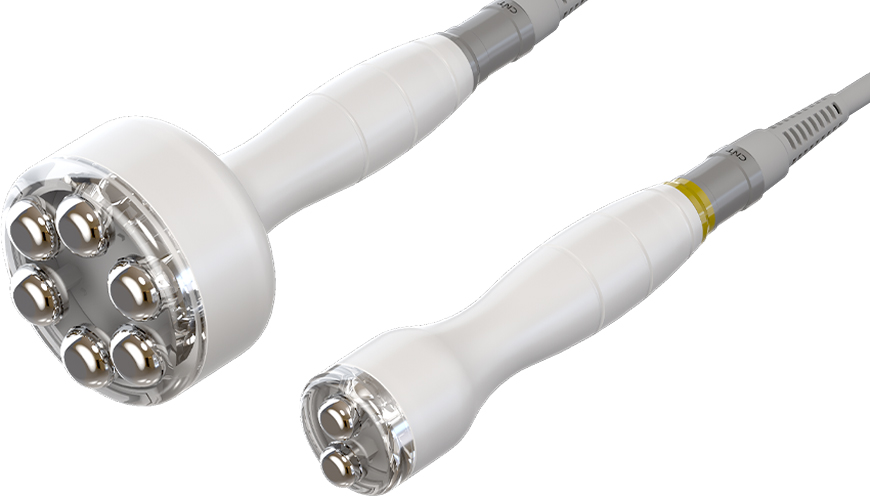

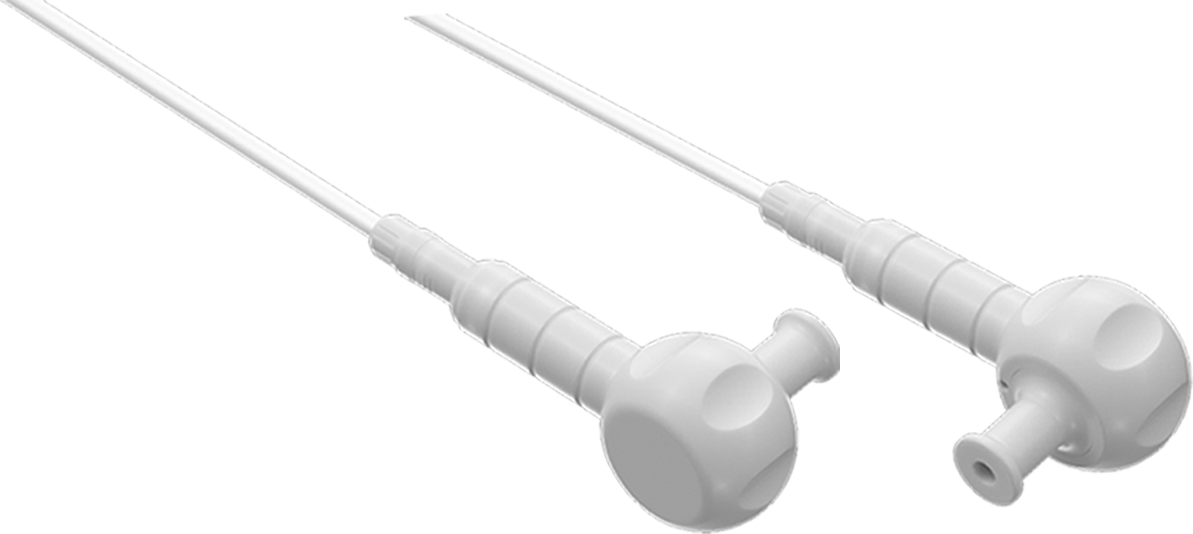

CET
RET
Bipolar

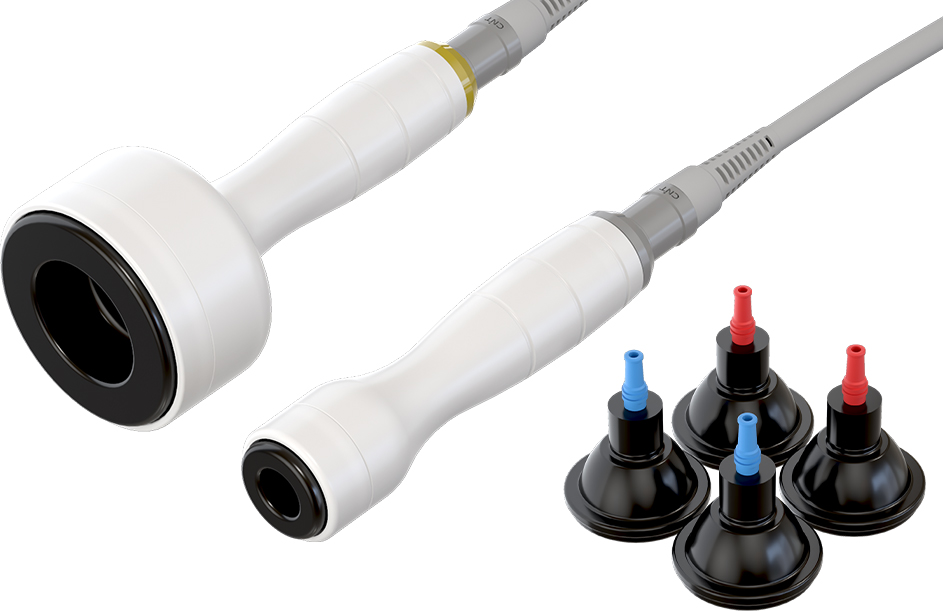

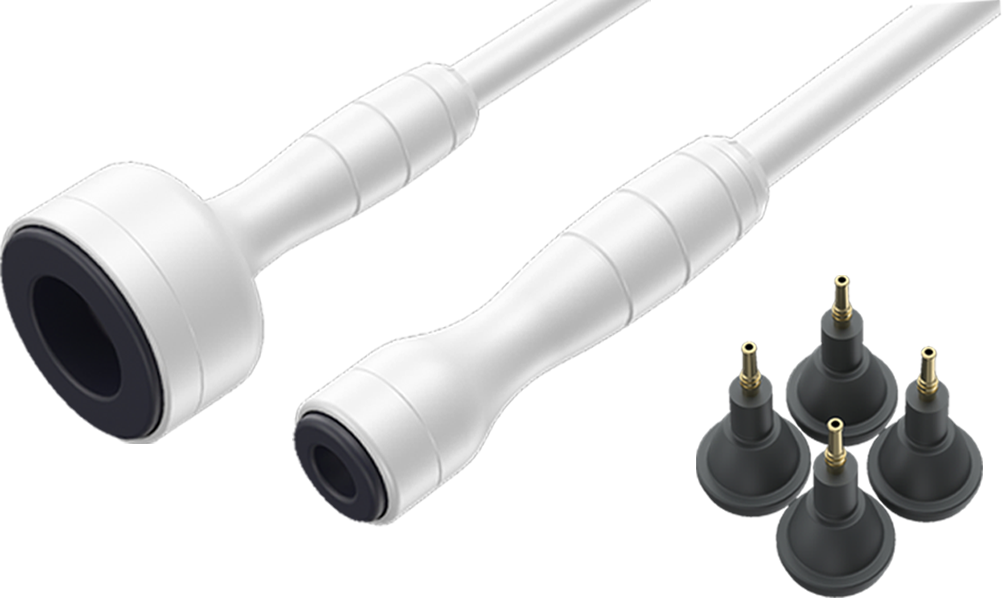

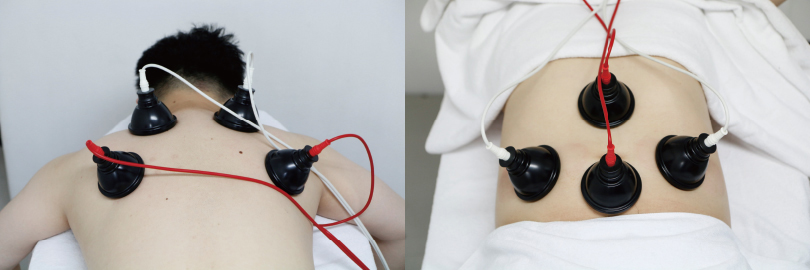

Attachable MULTI-SUCTION CUP

A high-frequency conductor can be attached using the patented multi-suction cup.
It induces a massage-like effect by controlling the suction/discharge through the suction pulse function.
