Maximum 220 W output
Onix
Needle depth up to 6 mm
Cooling System
Triple mode support
Products
Onix
SMPS

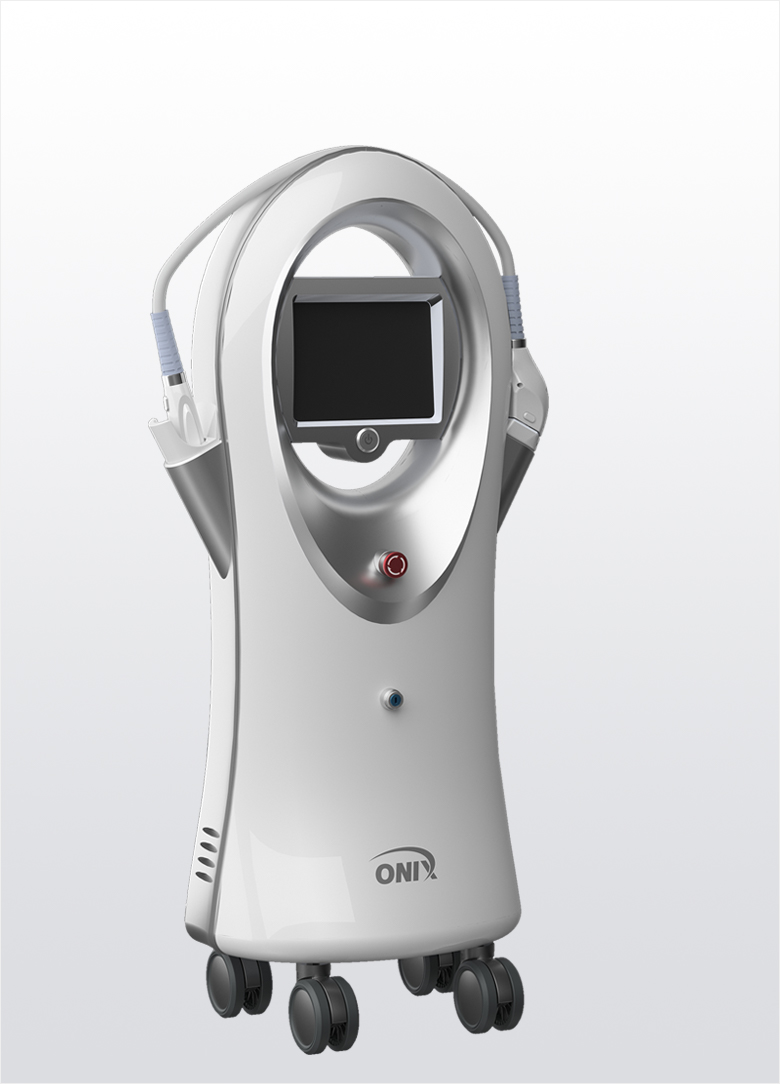

ONIX is a medical device
used for incision or coagulation
with high-frequency currents.
Principle of Operation
When the AC 100-230 V power is supplied by power inlet, then electric power is supplied to main board through the SMPS. The frequency that is made with pulse type and amplified primarily by the wave generator of main P.C.B assembly is secondary amplified by the transformer of main P.C.B assembly and then transferred to radiofrequency energy to human body by hand piece.

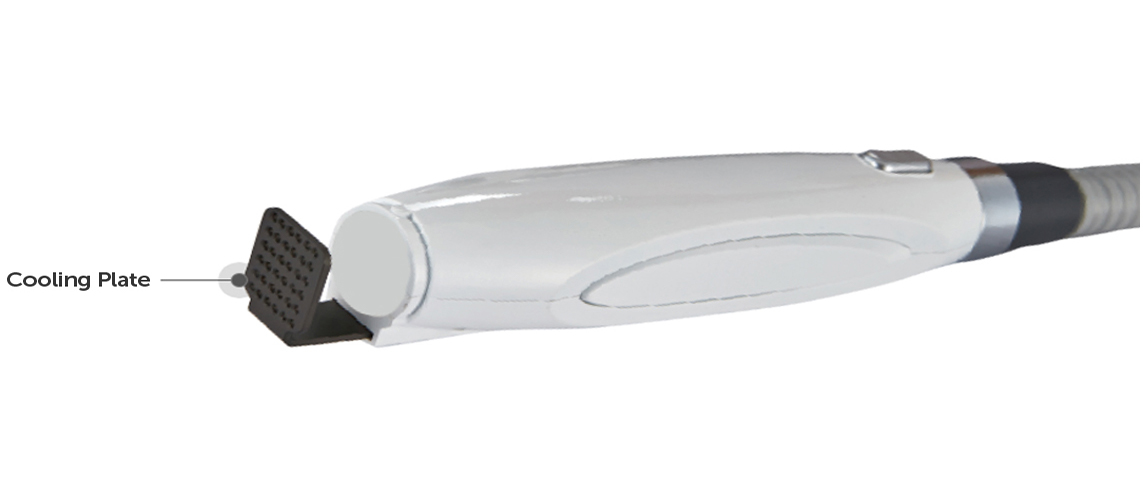

Cooling system
ONIX has a cooling system that lowers the temperature of
the epidermis through the cooling plate attached to the front of the handpiece

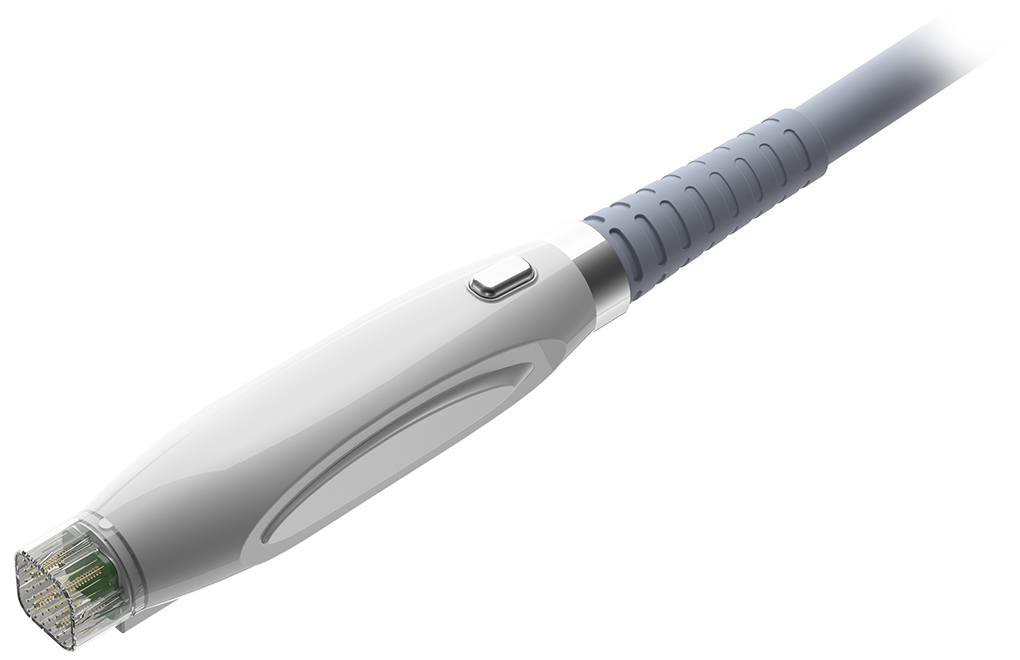

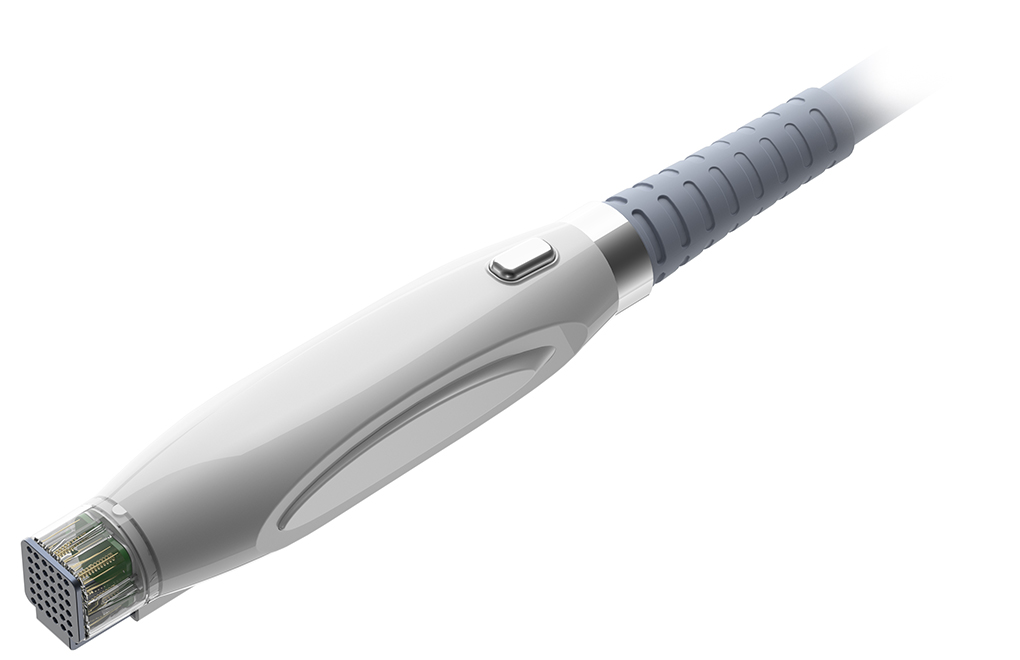

Needle depth up to 6 mm
ONIX can adjust needles from 0.5 mm to a maximum
depth of 6 mm with 0.1 mm increments.
Triple mode

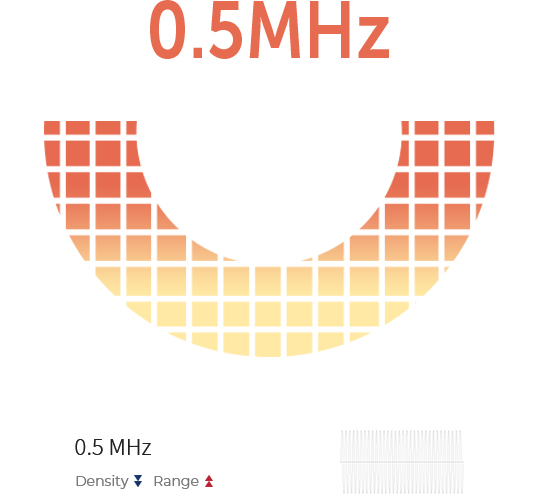

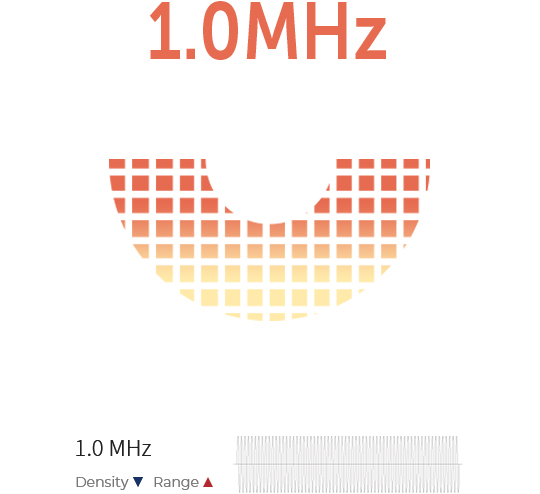

You can select and use any of three high-frequency
modes: 0.5 MHz, 1 MHz, and 2 MHz.
0.5
MHz
1.0
MHz

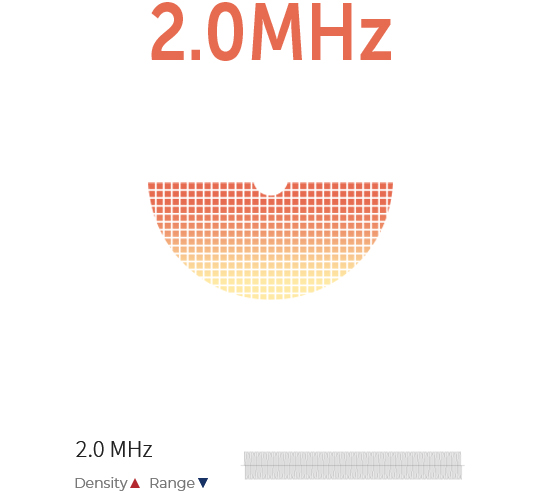

2.0
MHz
MECHANISM

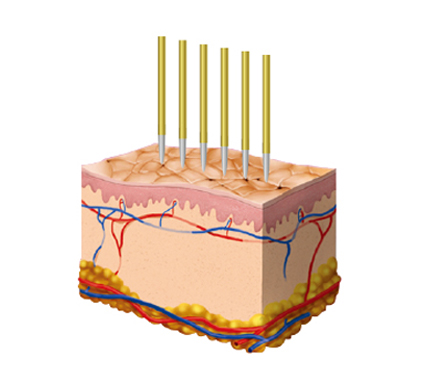

Microneedle contact
Microneedle insertion

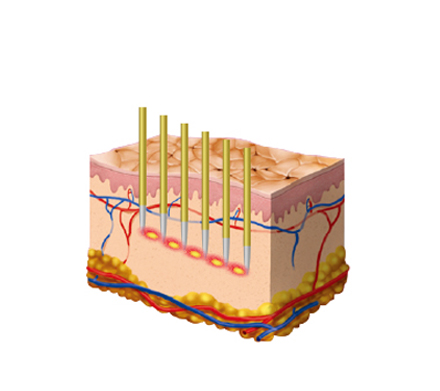

High-frequency current transmission

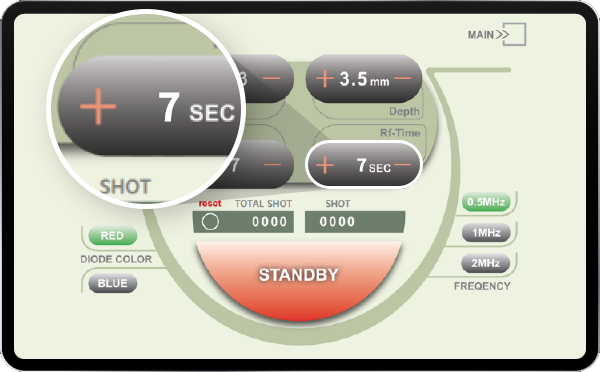

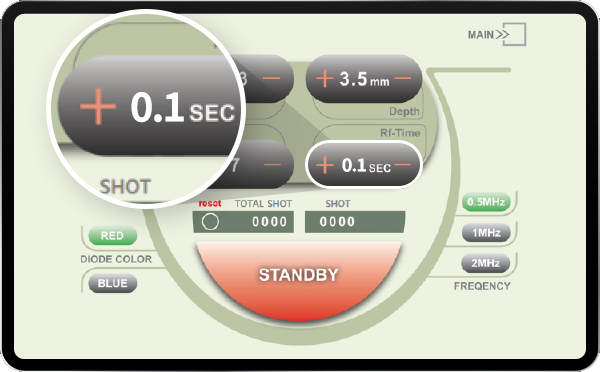

Energy output time
The energy transfer time can be adjusted from a minimum of
0.1 second (100 ms) to a maximum of 7 seconds (7000 ms).

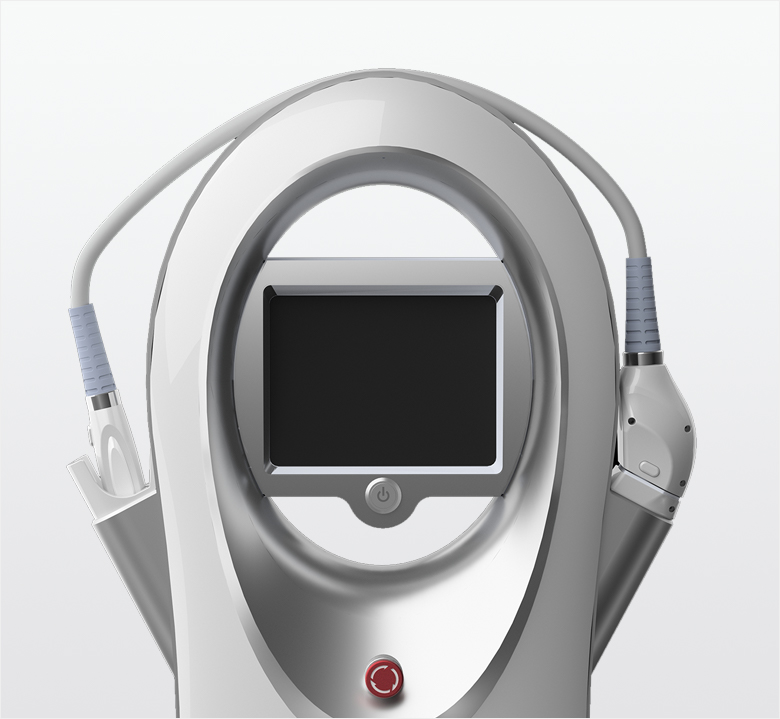

LCD Monitor
LCD switch
Emergency switch
Key switch
Handpiece holder
Wheel
Footswitch connector
Power Inlet

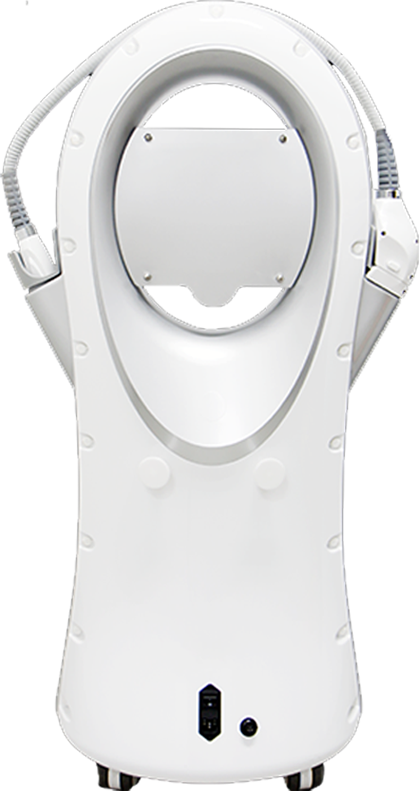

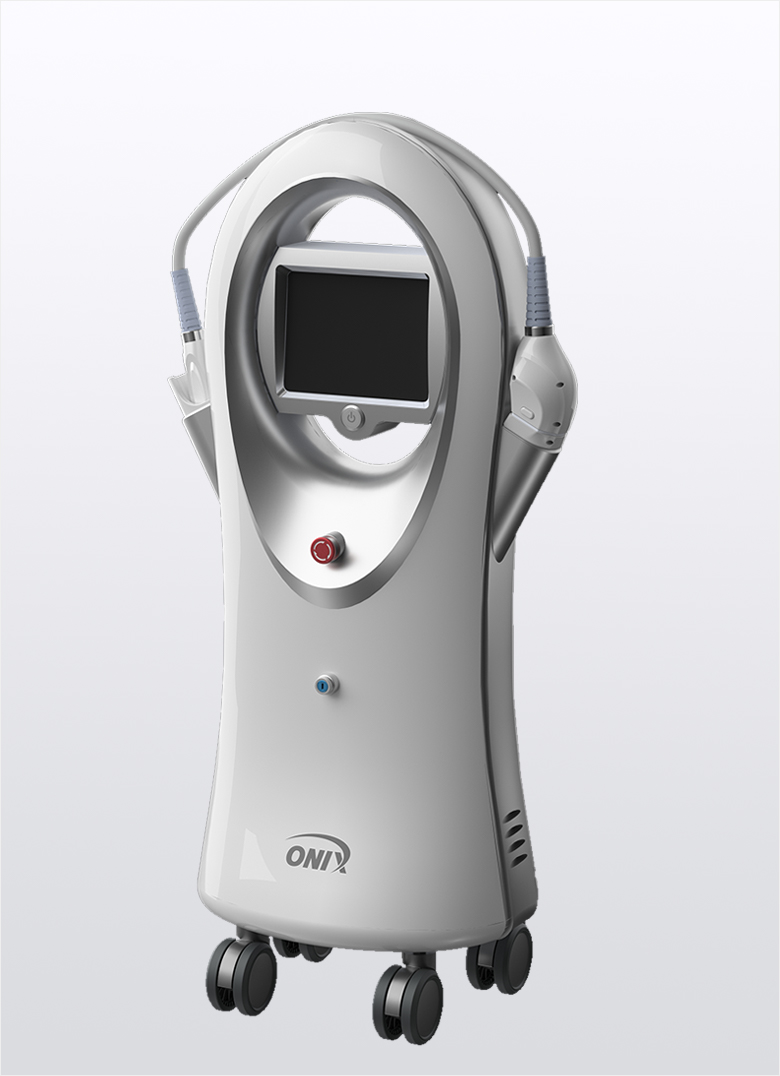

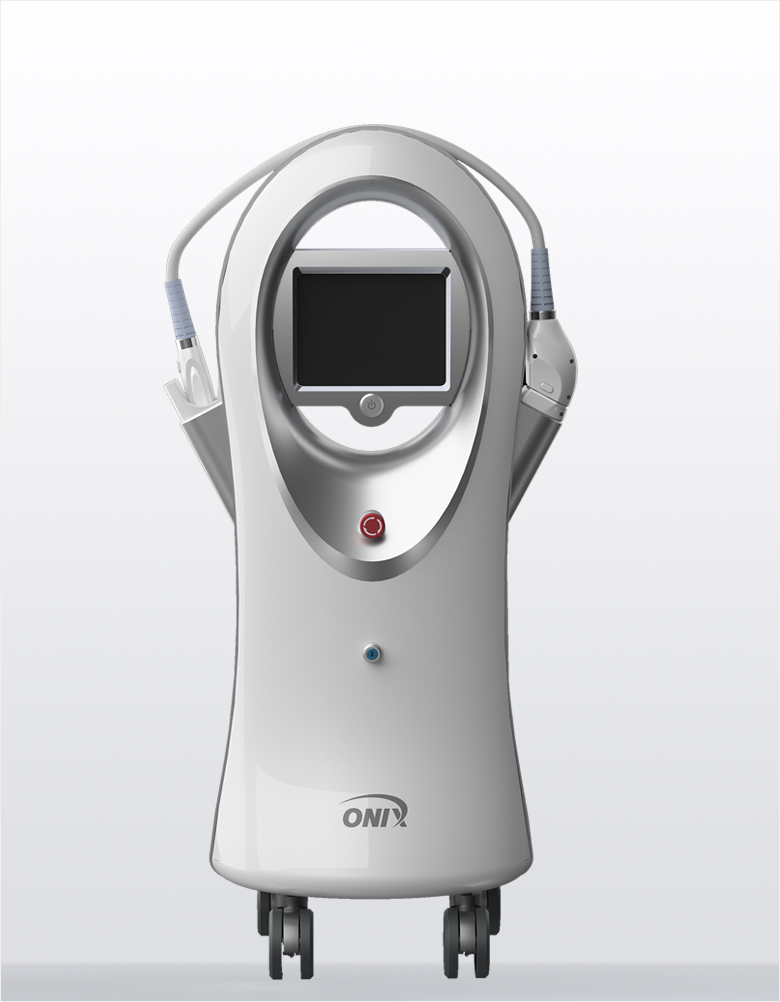

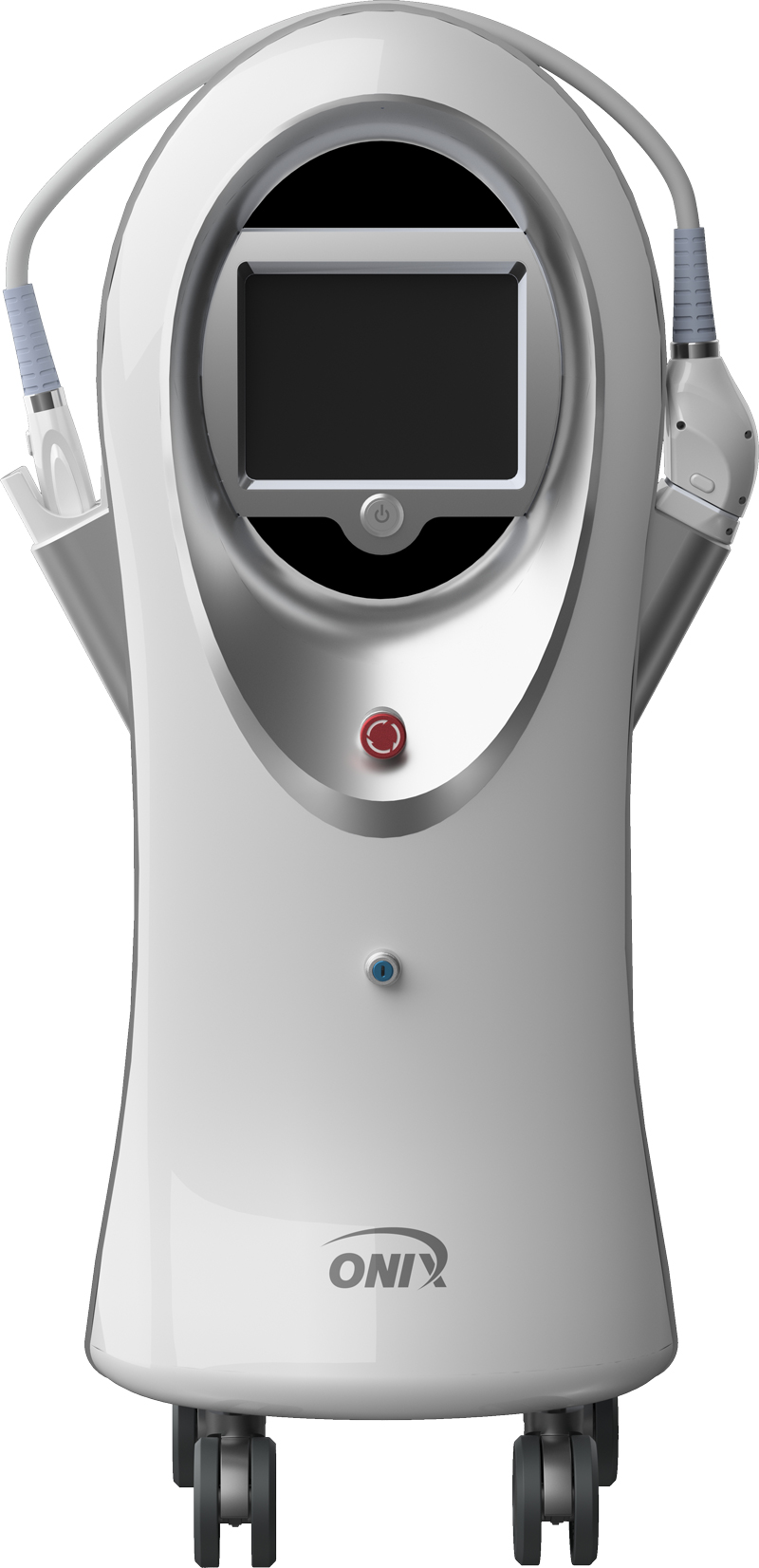

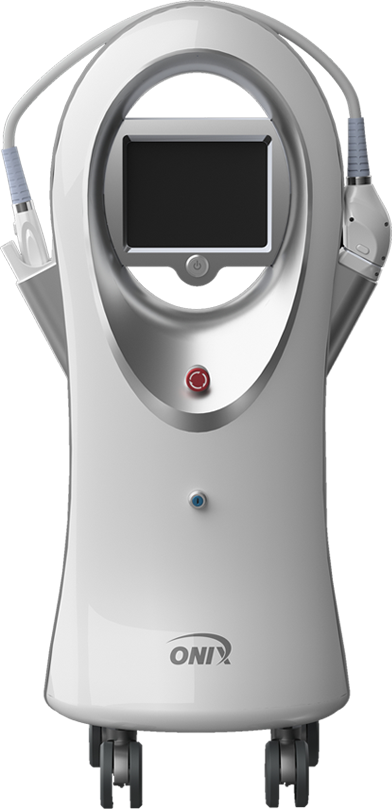

Main Body Description
Main Body Description
Main Body Description
Main Body Description
Main Body Description
Main Body Description
Main Body Description
01
LCD Monitor
02
LCD switch
03
Emergency switch
04
Key switch
05
Handpiece holder
06
Wheel
07
Footswitch connector
08
Power Inlet
